Apple TV Plus blended live coverage of Red Sox versus Tigers with feeds captured on iPhone 17 Pro. This was not a promo reel but real cool angles inside a real broadcast. The label on screen told viewers exactly when the iPhone feed was live. Read about this iPhone 17’s cinematic broadcasting.

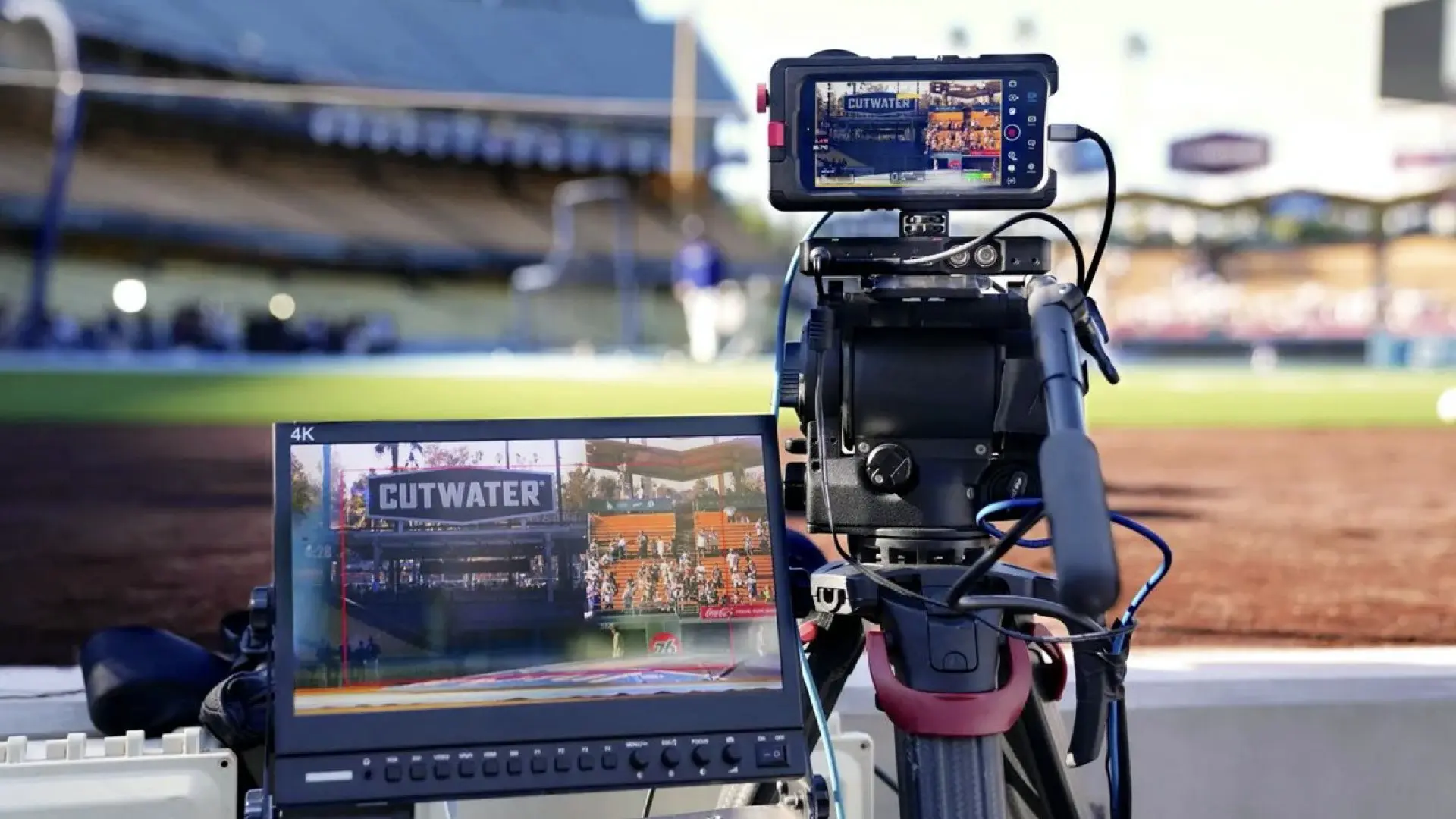

Multiple iPhone 17 Pro units were placed around the ballpark. Dugout positions. A roaming unit for crowd energy. A vantage inside structures that large rigs cannot reach. The phones delivered continuous feeds into the truck like any other camera source. Cuts to the iPhone were identified on screen for full transparency. Check out the BTS images in the article.
The leap is workflow. Less about sensors. More about the chain that lets a phone behave like a broadcast input. Timecode. Genlock. Log capture. External recording. These are now in play on a smartphone form factor. For the hardware bridge and sync story, read Blackmagic ProDock iPhone 17 Pro Cinema. For the sensor and motion capture context, read Apple Global Shutter iPhone Sensor.

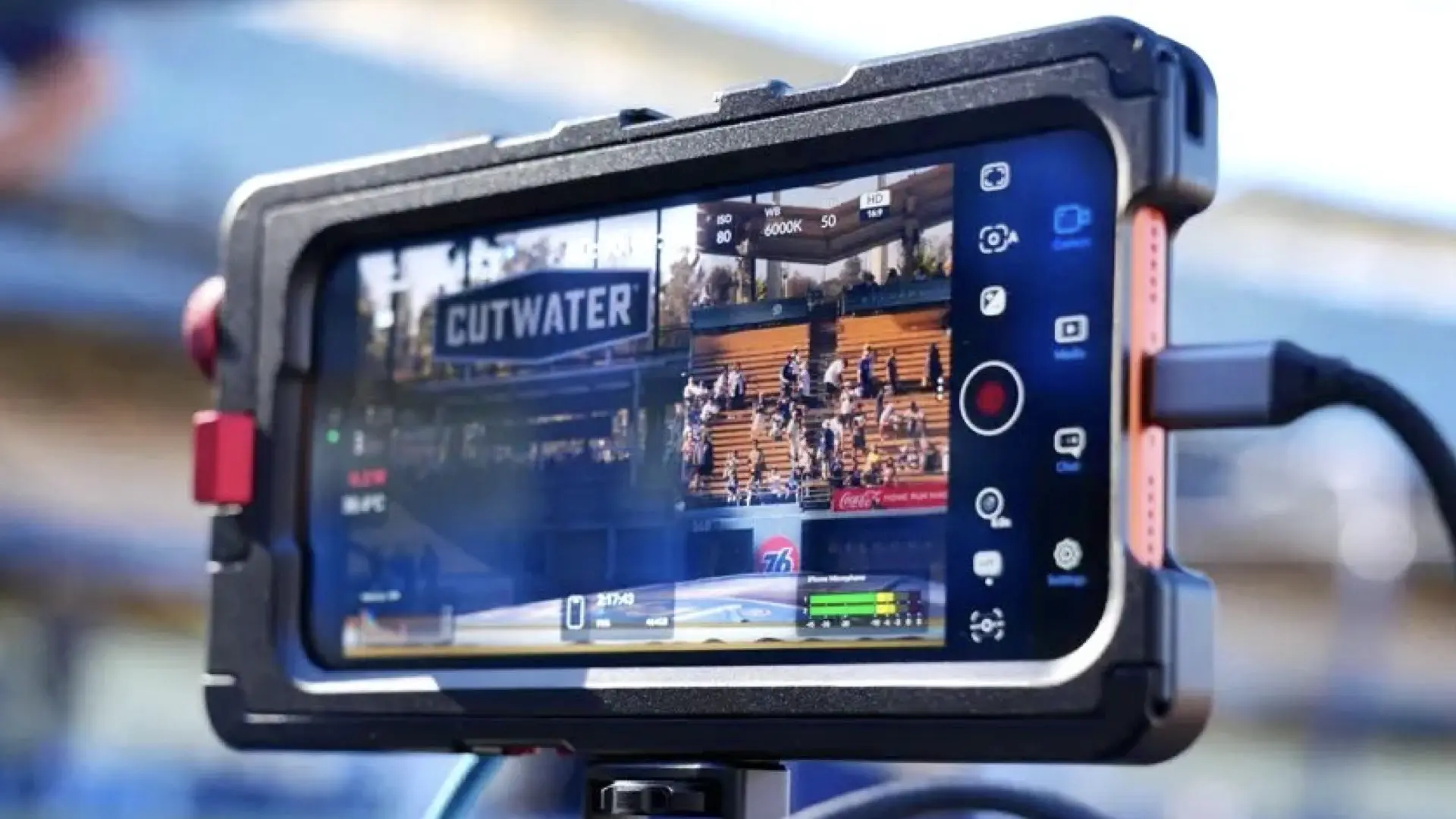

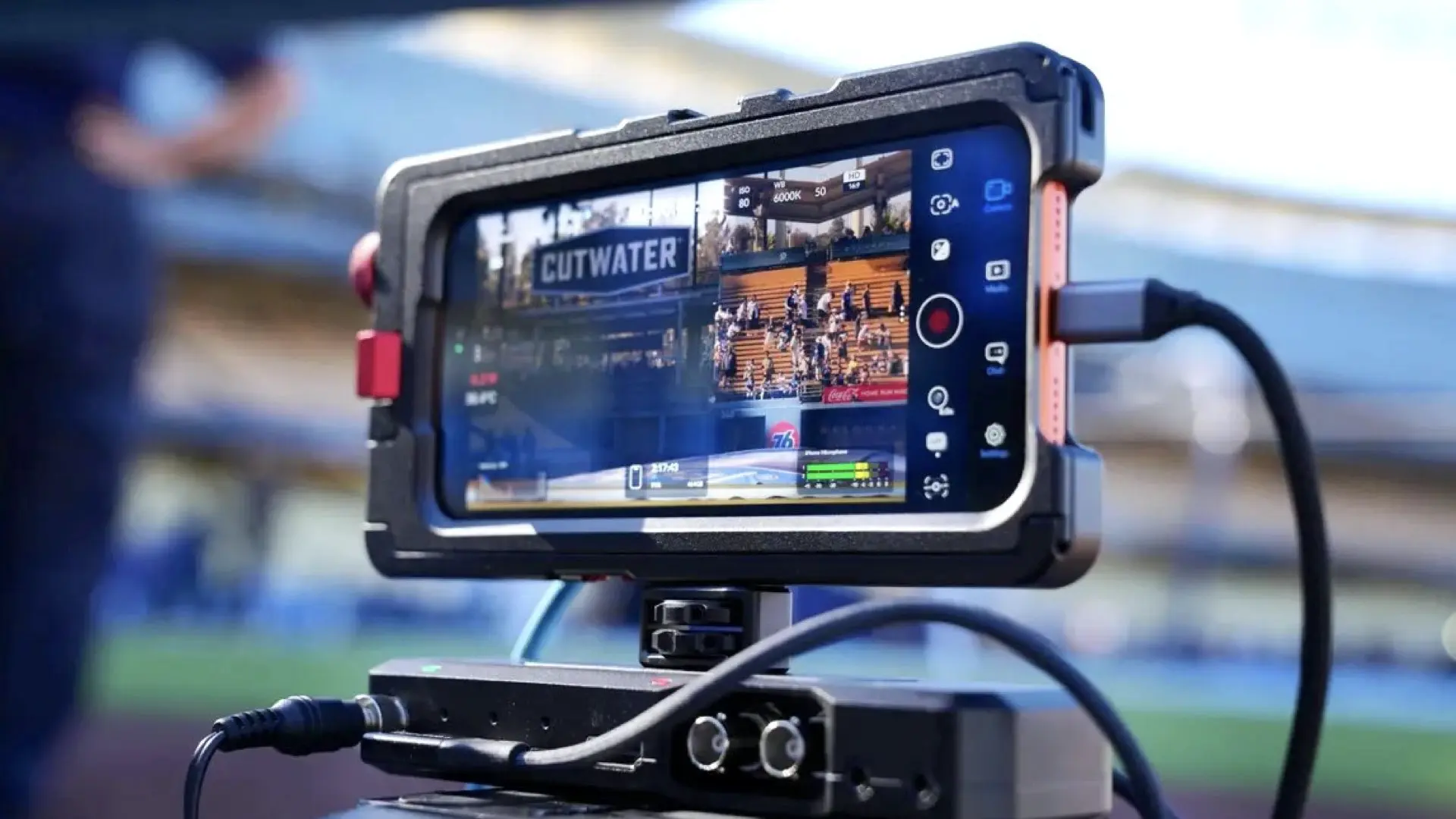

Each phone ran a pro camera app with manual control. The ProDock provided genlock and timecode. External SSDs handled sustained bitrates. Feeds landed in the switcher at true broadcast frame rates. From there, the iPhone sources were cut like any other camera. Directors gained intimate moments from the dugouts and fast repositioning in the stands.
The image pipeline in simple steps
-
Capture. Apple Log 2 or ProRes based capture for grading latitude.
-
Sync. Genlock and timecode from the dock for multi camera alignment.
-
Record. External SSD for high bitrate reliability during long takes.
-
Grade. One show LUT or an ACES path for consistent matching across cameras.
-
Deliver. Live switch or near live turnarounds with minimal color friction.
What filmmakers should notice
-
Angles. Tiny rigs reach fresh positions. Inside structures. At railings. Between seats.
-
Matching. Log capture and a unified color path remove the classic phone mismatch in multicam shows.
-
Sync. Genlock and timecode turn guesswork into engineering. Editors stop chasing claps.
-
Thermal headroom. External recording plus proper power improves stability over long innings.
Want to replicate the look
-
Use iPhone 17 Pro with a pro camera app. Enable Log capture for grading.
-
Add the ProDock for genlock, timecode, and external SSD recording. See Blackmagic ProDock iPhone 17 Pro Cinema.
-
Start color with Log 2 into ACES. Trim with a compact show LUT for fast turnarounds.
-
Mind exposure discipline. Protect highlights. Keep ISO consistent for cleaner noise behavior.
-
Stabilize responsibly. Prioritize locked shots for broadcast. Save aggressive movement for replay packages.
The story is workflow. When a phone gains timecode. Genlock. Log capture. External SSD recording. It becomes a credible broadcast input. Friday Night Baseball proved it on a national stage. The creative upside is obvious. New points of view without new compromises. Further reading about current and future innovation regarding the iPhone on YMCinema. Blackmagic ProDock iPhone 17 Pro Cinema and Apple Global Shutter iPhone Sensor.
