Like most homes, mine has a router and devices with an RJ45 connector, commonly referred to as an Ethernet port. I wanted to upgrade my home network by replacing RJ45 interfaces with SFP+ (Small Form-factor Pluggable Plus) to make the best of your high-speed internet connection. Who doesn’t want to enjoy faster speeds and the lowest possible latency? However, you shouldn’t order SFP+ modules mindlessly and expect them to work with home networking devices that primarily feature an RJ45 interface. Before jumping the gun on SFP+ interface-based solutions, it’s essential to understand how SFP+ differs from RJ45 in your home network.
6
Design and size
Visually obvious difference
The SFP+ transceiver features a distinct interface and resembles a small, rectangular module. Most require an optical fiber to work, but there are Direct Attach Copper (DAC) cables that carry copper with SFP+ interfaces at both ends. While the SFP+ interfaces are easily swappable, they require compatible ports and components to work inside a router, switch, or a desktop inside your home.
The RJ45 interface is familiar because of its universal availability on desktops, laptops, game consoles, smart TVs, routers, switches, and several other devices at home. A typical RJ45 connector consists of eight pins for twisted copper cables for Ethernet connectivity. The translucent part reveals different pins that connect various devices with an RJ45 port. That said, the RJ45 interface is not hot-swappable at home, as a crimping tool is required to secure a connector on the cable.
5
Compatibility with devices
Out-of-the-box support hits different
Due to its physical and technical differences, you’ll need to use routers and switches that offer matching 10G SFP+ ports to plug a module. However, only select top-tier Wi-Fi 7 routers carry them, which are prosumer-grade. You can use a Direct-Attach Copper cable to connect them, or use an optical fiber cable with SFP+ transceiver modules. For desktops, you’ll need an SFP+ PCI Express Ethernet adapter.
The RJ45 interface is universally available and can be found on various devices, ranging from smart TVs to SBCs. Their plug-and-play nature is how you connect desktops, laptops, audio equipment, and other devices easily.
4
Heat generation and power consumption
Higher speeds can make things hot
For internet connections and LAN connectivity with speeds of 1Gbps or lower, the RJ45 interfaces are more suitable for home networking. However, the 10GBASE-T copper modules for an SFP+ to RJ45 interface will run hot to render 4K/8K videos over the network. Especially when using fanless switches in small, poorly ventilated, and enclosed environments. Improper cabling or using older (Cat5e) cables for such purposes may lead to more power consumption (roughly ~4-7W per port) and potential signal loss, even if their run is up to 100 meters. The Ethernet cables are also used to offer Power-over-Ethernet to support devices like IP cameras, access points, or even an SBC like Raspberry Pi.

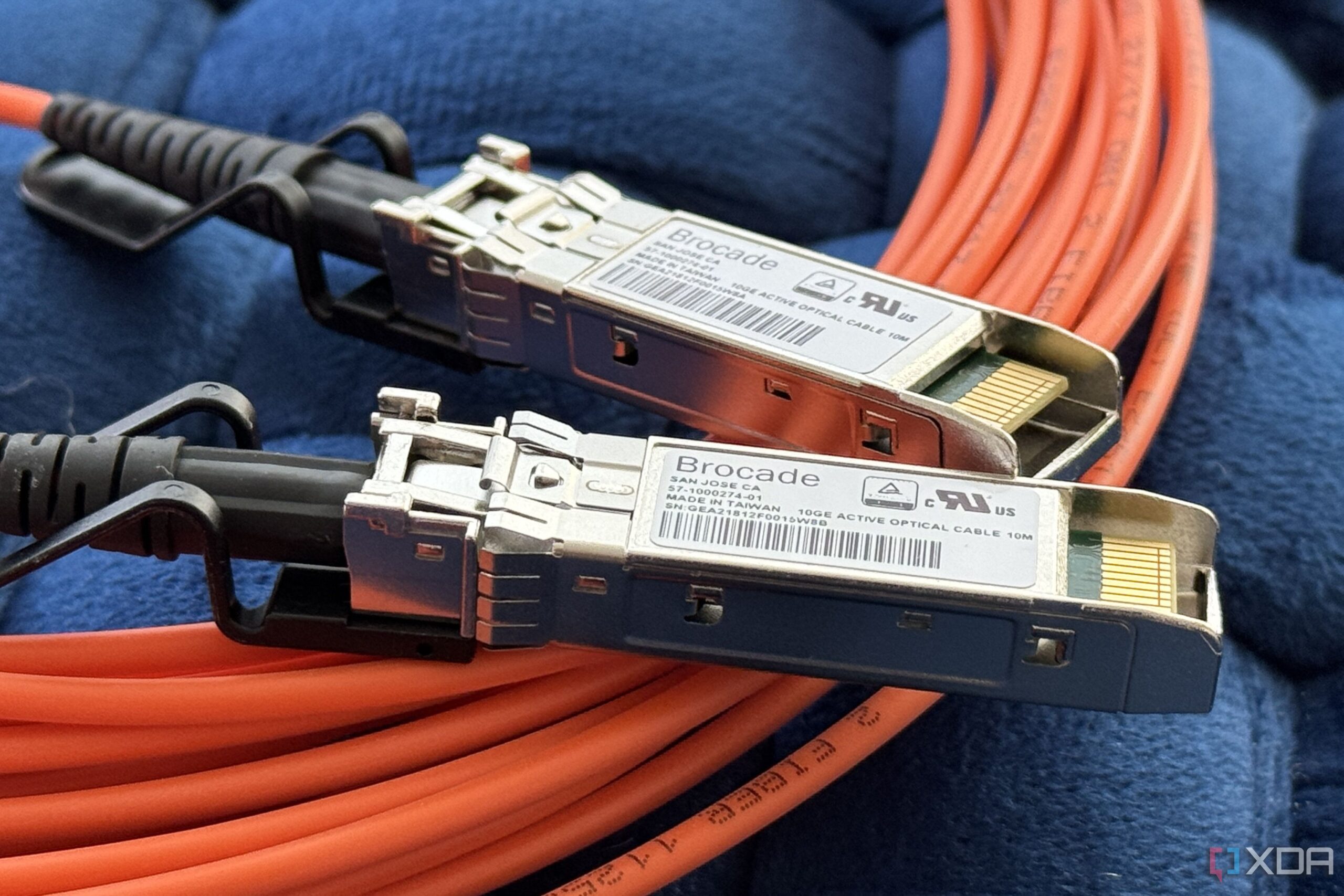

Comparatively, the SFP+ interface with fiber cables can consume up to 1.5W per port while providing high-speed transmissions for a distance of up to 10KM. SFP+ modules run cool even while handling large data throughput. You can use DAC cables with it, but they’re of a short run (up to 10m). Their optical fiber counterparts, such as Active Optic Cables, have relatively longer runs (up to 100m) but are also expensive. That said, SFP+ is ideal for a silent home lab that is power-efficient and stays cool even without needing dedicated fans.
3
Speeds and interference
Distances and installation matter
The SFP+ interfaces require specific hardware and technical knowledge to integrate them into a home network. If the ISP provides a fiber-based connection, then mixing SFP+ with RJ45 devices can help you enjoy up to 10Gbps speeds. That works when building a low-latency NAS for video editing or development environments for a small team. Since they aren’t conductive to electricity, they don’t suffer any electromagnetic interference.
You can set up 10GbE networking in your home should you desire a powerful home network. That’ll still serve you well to support your high-end NAS, 4K/8K video editing, and powerful home lab to enjoy 10Gbps speeds with specific 10GBase-T modules. However, you’ll need to assist that with a router that’s at least Wi-Fi 5 or better, supports NAT acceleration, and offers Gigabit WAN and LAN ports. The Ethernet cables for the RJ45 interface are susceptible to electromagnetic interference, leading to signal loss when installed near heavy electrical transmission cable lines. It can also occur when those cables are of poor quality and improperly installed.
2
Immunity to electrical hazards
When safety is paramount
The SFP+ interface offers better physical-layer security since it works with optical fiber cables that transmit signals through light. So the fiber cables make them immune to risks of surges or lightning in longer, outdoor runs. Their non-conductive nature makes them safe to put through walls and floors, even between buildings.
Meanwhile, RJ45 connectors featuring Ethernet cables are susceptible to damage from lightning and power surges. Since they carry electricity, most smaller Ethernet cables come with proper shielding, as they too can get heated and consume a significant amount of power. But you can’t expect the same level of cable quality from any ISP installation.
1
Upfront cost
Dent in the wallet
One of the top reasons to consider before picking SFP+ is the cost. The transceiver modules, optical cables, or DAC cables for shorter runs are expensive. You can always buy second-hand SFP+ gear to build a home lab or support your high-end NAS. Unless you know what you’re building, it’s okay to buy a couple of used modules and set them up in a mixed environment alongside RJ45 connectivity for general devices.
Meanwhile, it’s easier to grab cables featuring RJ45 connectors from local electronics shops or buy them online. You can run Cat6e cables throughout your house to connect computers, media player systems, cameras, smart TVs, and other devices that support Ethernet connectivity, unless you prefer a completely wireless setup with mesh routers. Even that will involve some investment, but it will be relatively less than jazzing up your home network with devices that have an SFP+ interface.
Building a prosumer-grade home network that’s future-proof
While the RJ45 interface enjoys widespread appreciation, you may consider using some SFP+ modules to equip your home network for higher speeds. Unless you plan to build a mini data center at home and throw your wallet at the screen, you can live with a mixed setup. That’s where RJ45 interfaces connect to general devices, and the SFP+ interface links to high-end NAS, 10G switches, or home labs. Because it’s not just about the cables (copper or fiber), it’s also about the interfaces that connect your networking equipment with other devices. Take a look at my colleague’s experience of building and using a prosumer-grade home network.
